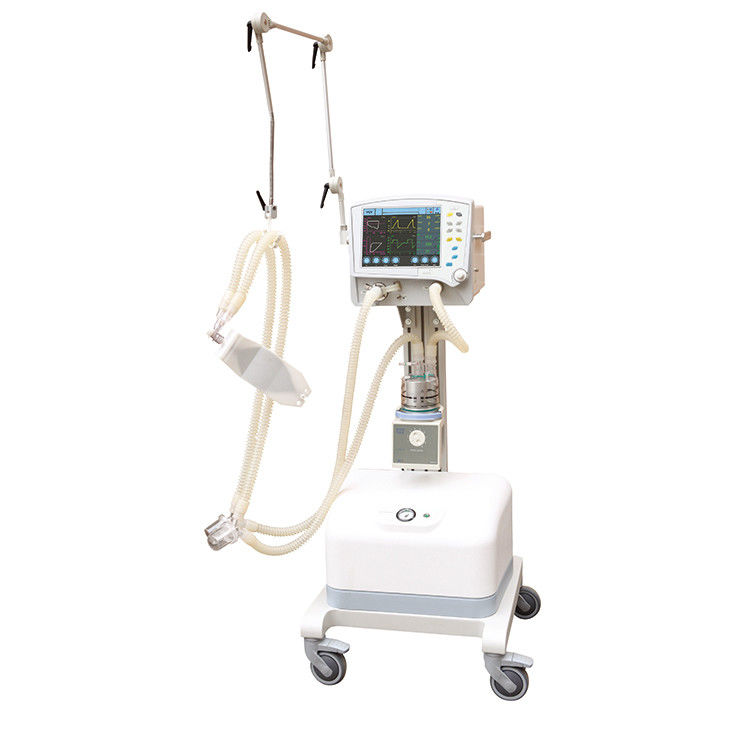

Intensive Care Ventilator Breathing Machine , Pneumatic Icu Ventilator Machine

Intensive Care Ventilator Breathing Machine , Pneumatic Icu Ventilator Machine
Intensive Care Ventilator Breathing Machine , Pneumatic Icu Ventilator Machine

Large Image :  Intensive Care Ventilator Breathing Machine , Pneumatic Icu Ventilator Machine

Product Details:
Place of Origin: China
Brand Name: Eternal top
Certification: CE, FDA
Payment & Shipping Terms:
Price: Negotiation
Payment Terms: T/T ; L/C

Intensive Care Ventilator Breathing Machine , Pneumatic Icu Ventilator Machine

Description
Name: Ventilator Machine Icu Instrument Classification: Class III
Screen: 12 Inch TFT Color Touch Screen Model Number: SH300
Ventilation Type: Pneumatic-driven, Electronic-controlled Service: OEM, ODM
Type: Breathing Apparatus
High Light:

oxygen breathing apparatus

,

portable medical ventilator

CE Approved quality ICU Ventilator for intensive care SH300 ventilator

Graphical display

Tube pressure-time wave line

Air flow-time wave line

Pressure volume loop

Product Description

CE Approved quality ICU Ventilator for intensive care

* The best selling machine from China.

* Ultra-long warranty: 2 years

Electrical
Power supply
AC100~240V, 50/60Hz, DC12V, 4.4Ah
Battery
4 hours discharging
Power consumption
65VA
Ventilation
Driven Mode
Pneumatic-driven, electronic-controlled
Ventilation Mode
VCV, PCV, SIMV-V, SIMV-P, PSV, SPONT, CPAP, APRV, BIPAP (option)
Tidal Volume
50 – 1500 ml
Frequency
1 – 100 bpm, 1 – 40 bpm (SIMV)
Tinsp
0.1 – 12s
Tpause
0 – 4.8s
Pressure triger sensitivity
-20 – 0 cmH2O
Flow triger sensitivity
1 – 20 LPM
PSV
0 – 70 cmH2O
Phigh
1-80cmH2O
Plow
0-79cmH2O
Waveform
P-T, F-t, V-t
Loops
P-V, V-F
PEEP / CPAP
0-50cmH2O
FiO2
21% - 100%
Psupport
0 – 70 cmH2O

Pinsp
5 – 70 cmH2O
Thigh
0.1 – 30s
Tlow
0.5-30s
Alarm Silence
120s
Parameter Monitored
Vti, Vte, MV, MVspn, f, fspn, FiO2, Ppeak, Pmean, Pplate, PEEP, Pmin, Compliance, Resistance
Interface
RS232, VGA
I:E Ratio
1:10 – 10:1
Electronic (Optional)
Off, 3 – 39 cmH2)
FiO2 (optional)
21% - 100%
Alarms
3 level visible audible alarm Tidal volume, Munite volume, Frequency, Airway pressure, Continuous positive pressure, Apnea, FiO2,Battery low and Battery exhausted.
General
Screen
12'' TFT Color Touch Screen
Dimension
400 x 303 x 250 mm (main unit)
Net weight
16 kg (main unit)





Packaging & Delivery
Packaging Details
Carton
Port
Any ports in China
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 25 To be negotiated


FAQ:

Q1. Are you a factory or trading company?

• We are factory,OEM&ODM orders are available here.

Q2. Where is your factory located? How can I visit there?

• Our factory is located in Luoyang City ,Henan Province, China. 2 hours by air from Guangzhou to

Luoyang.You can go to Luoyaog by train or by air, and then we will pick you up there.

Q3. How long is your delivery time?

• If we have raw materials in stock,usually 15 - 25 days ,if not,it will take 20-30

days.which depends on the quantity.

Q4. How can I get some samples? It is free or extra?

• We are honored to offer you samples for free.

Q5. Which certification do you have?

• Our company has passed ISO 9001/IS014001/1S028001 certification.

Q6. What is your terms of payment ?

• L/ C,T/T,Western Uniont Paypal,cash,credit etc..
